The PLS 90 from Pacific Laser Systems is an interior and exterior laser level, designed specifically for laying out 90 degree angles.
No More 3-4-5, sagging string lines, or guesswork.
Get fast, accurate and dependable square layouts.
Use the PLS90 in bright sunlight or interior environments, square on slab or square on slope applications.
The PLS90 is easy to use with a working range of +/- 250 feet, a battery life of up to 30 hours and a self leveling range of 6 degrees.
Use the laser on the ground or on a tripod - save valuable layout time.? PLS Lasers are designed by contractors for contractors.
The PLS90 tool comes complete with carrying case, universal base, floor target, and operating manual. The PLS90 system and kit also includes a SLD laser detector. The 5/8-11 Tripod is included with the PLS90 kit.
PLS Lasers – the professional standard.

(click image to enlarge)

Quick Overview

Specifications

Accuracy: +/- 1/8 inch @ 100 Feet (3mm @ 30 meters)
Working Range: +/- 250 Feet (76 meters) w/SLD Detector
Operating Time: 25 Hrs
Dimensions: 5" x 2 1/4" x 4 1/2"
Weight: 1.7lbs. (.77kg.)
Power Supply: 3 "AA" Batteries
Self Leveling Range: 6 Degrees
Multiple Functions

Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

Tools Includes

PLS90 Tool
Carrying Case
Universal Base
Floor Target
Operating Manual
Effective May 1, 2011 New 3 Year to Life Warranty. Contact PLS or your local PLS dealer for details.

System Includes

Everything Included with the Tool

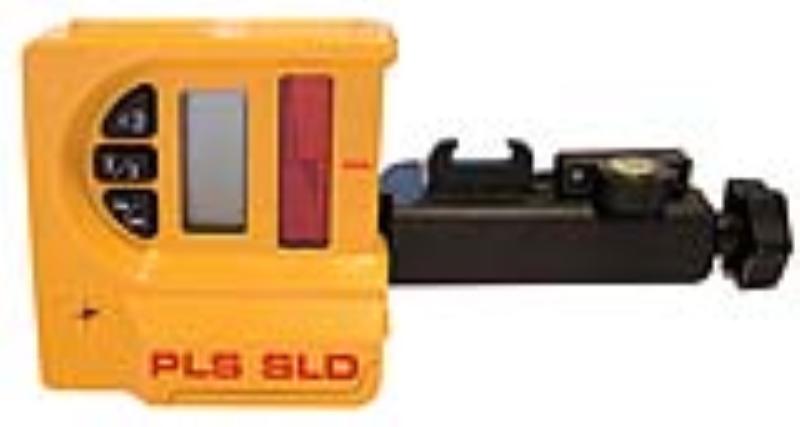

SLD Laser Detector

Kit Includes

Everything included with the System
5/8-11 Tripod

Applications

Concrete Forms And Exterior

The PLS90 is designed to tackle one of the most challenging layout tasks on the job... Precise 90º visible and pulsed reference lines for interior and exterior layout of square on the jobsite.

Glaziers

The PLS5 and PLS90 are designed for layout of control points and lines in outdoor conditions and bright sunlight. Working range is 250+ feet with an accuracy of +/- 1/8" at 100 feet. Lay out conduit, anchor bolts and square on slab faster than ever before. Eliminate time consuming set up of expensive infrared rotary lasers. PLS offers more utility outdoors at a fraction of the cost of typical rotary lasers.

Additional Information

Manufacturer: Pacific Laser Systems
