The new PLS5 is smaller, lighter, and more durable and self-leveling to within 6 degrees – it’s the most versatile construction laser alignment tool for the professional contractor.

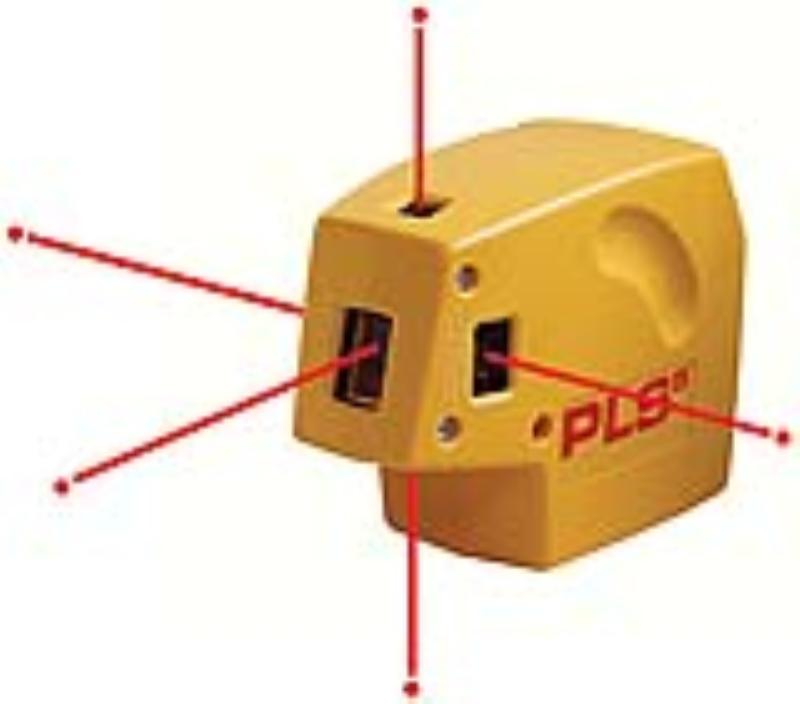

The new PLS5 has 5 bright points with all beams square to each other. This tool does not shoot lines; only points. Plumb from floor to ceiling or from 50 feet off the ground.
Shoot level benchmarks and square-on-slab, even in bright sunlight, using the unique PLS pendulum target and laser detector.
Save time and money when your bubble vial level or rotary laser is too limited or too complicated for the job.
The PLS5 provides the professional contractor more utility than any other construction laser tool in the industry.

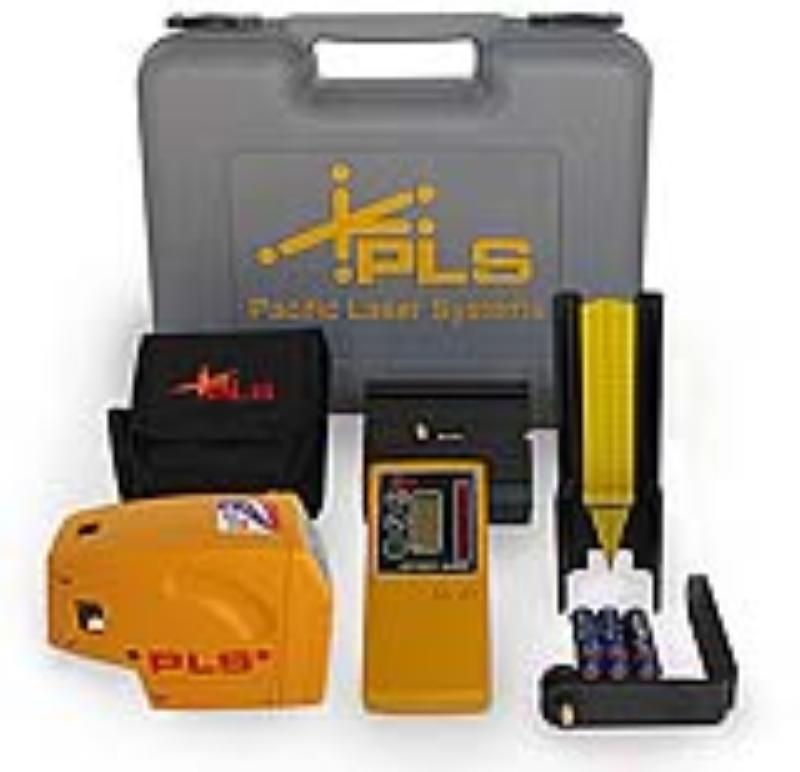

The PLS5 tool comes complete with pouch, pendulum layout target, magnetic wall bracket, floor stand, and carrying case. The new PLS5 system includes the PLS HVD laser detector.
PLS Laser - The professional standard.

(click image to enlarge)

Quick Overview

Specifications

Working Range: +/- 100 Feet (30 meters)
Accuracy (all beams): +/- 1/8 inch @ 100 Feet (+/- 3mm @ 30 meters)
Leveling: Automatic
Leveling Range: 6 Degrees
Power Supply: 3 "AA" Batteries
Operating Time: + 30 Hrs. continuous
Dimensions: 2" x 4" x 4 3/4"
Weight: 1.13 lbs. (.52 kg.)

System Includes

Everything Included With The TOOL
HVD 500 Detector
Bracket for Pendulum Layout Target

Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

Tools Includes

PLS5 Laser Unit
Magnetic Wall Bracket
Pendulum Layout Target
Floor Stand
Compact Carrying Pouch
Carrying Case
Operating Manual
Effective May 1, 2011 New 3 Year to Life Warranty. Contact PLS or your local PLS dealer for details.

Applicaions

Metal Studs And Wood Framers

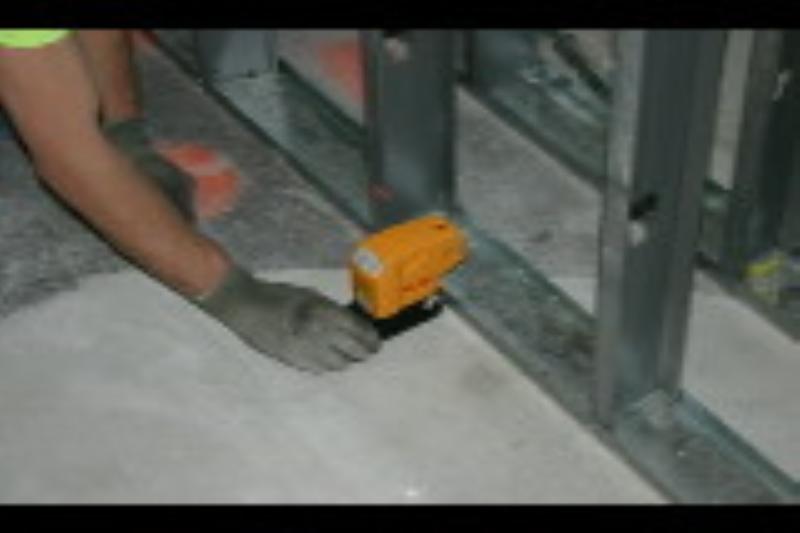

Lay out and install track for commercial or residential projects. Using the PLS5 and our target accessory, project 90 degree angles in a fraction of the time. No more 3-4-5. When installing top and bottom track or plates, place the PLS laser directly over the outside edge of your bottom track or plate. The PLS top reference point will mark where the outside edge of your top track or plate should be.

Steel Erectors

Using our PLS180 System or the PLS5, contractors can determine horizontal and vertical reference lines outside in bright sunlight.?

Remolding

Use PLS laser tools to determine existing conditions and to lay out cabinetry fixtures, backsplash, mirrors, lights and more.

Additional Information

Manufacturer: Pacific Laser Systems

For More Information on the Laser, [Click Here] to Link to Manufacturer Web Site
