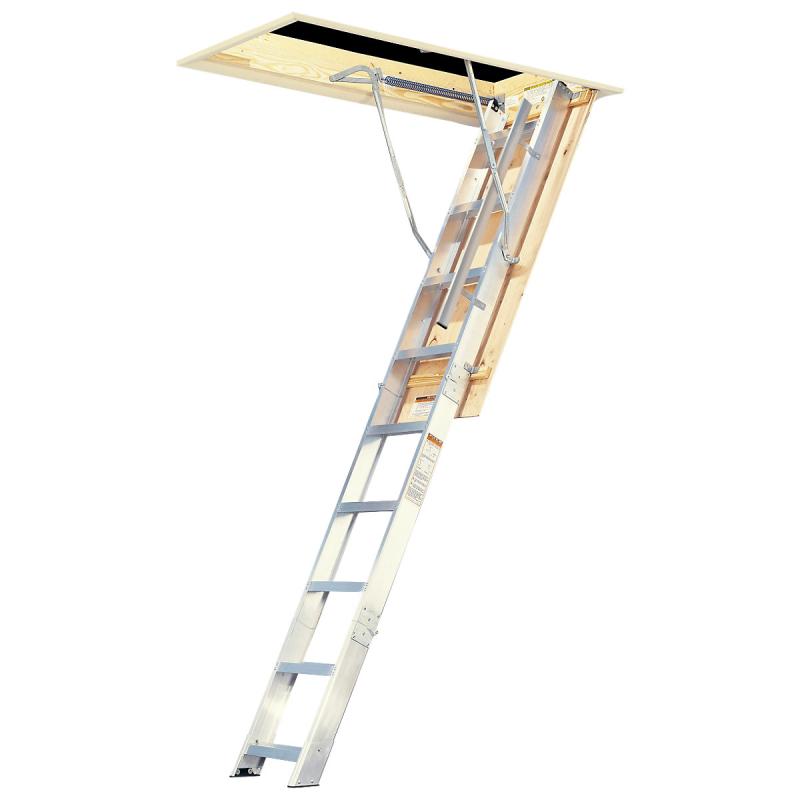

The A series aluminum attic ladders have a duty rating of 300 pounds yet are lightweight and easy to open, close and install. The aluminum side rails are attractive and will not splinter, decay or rust. The grooved steps are slip resistant, and heavy duty hinges ensure a rigid structure. Adjustable feet make installation easy and ensure a correct fit. The high quality door can be painted or stained. The unique design adds toe clearance for comfortable climbing. The counter-balance mechanisms eliminate sag and springiness.

(click image to enlarge)

Quick Overview

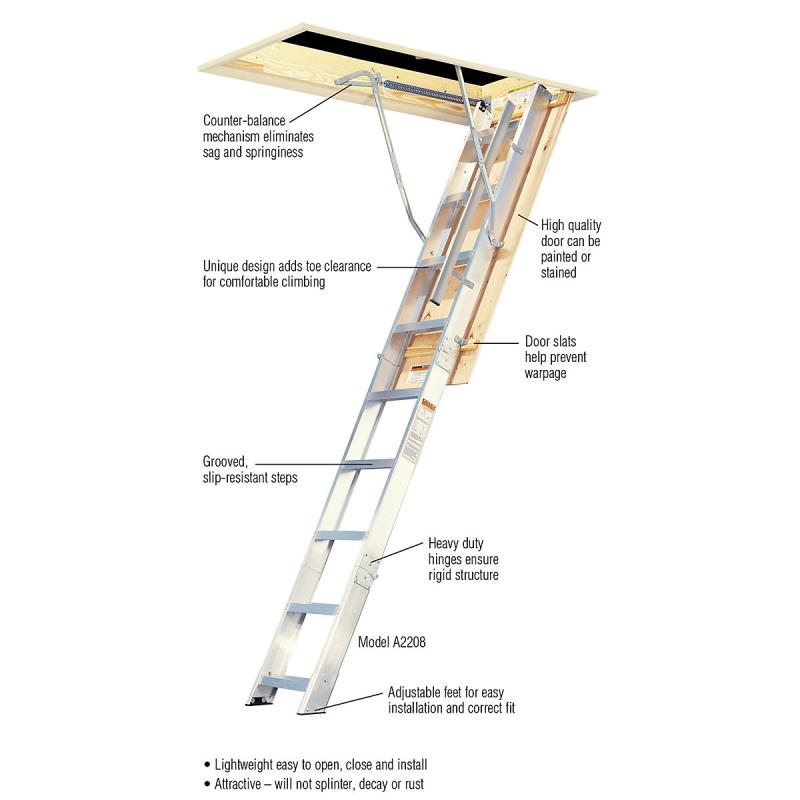

Features:

Counter-balance mechanism eliminates sag and springiness
High quality door can be painted or stained
Unique design adds toe clearance for comfortable climbing
Door slats help prevent warpage
Grooved,slip-resistant steps
Heavy duty hinges ensure rigid structure
Adjustable feet for easy installation and correct fit
Lightweight easy to open, close and install
Attractive – will not splinter, decay or rust
To adjust to 10’5” height, cut off 12” from bottom

Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

Performance Overview

Size	Load Capacity	Material
8'-10'	300 lbs	Aluminum

Dimensions

Rail Size: 1" x 3-1/2"
Flange: 1"
Step Length: 15-1/2"
Step Width: 3-11/16"

Additional AH Series Models

Model No.	Size	Floor to Ceiling Height Range	Rough Opening Width x Length	Ladder Width	Swing Clearance
A2510	10'	8'9" to 10'4"	25-1/2" x 54"	6' 1"	6' 6"
A2512	12'	10'5" to 12'	25-1/2" x 64"	7'	7' 3"

Specifications

Size: 12'
Floor to Ceiling Height Range: 10'5" to 12'
Rough Opening Width x Length: 25-1/2" x 64"
Load Capacity: 300 lbs
Ladder Width: 17-5/8"
Landing Space Range: 7'
Swing Clearance: 7' 3"
Foot Material: Aluminum with rubber bottom
Locking Device: Spring
Opening Device: Rope
Door Material: Plywood
Frame Material: Pine
Full Width Door hinge: Yes
Metal-to-Metal Rail hinge: Yes
Requires Cutting Foot Angle: No
Number of People for Installation: 2
Certifications: ANSI A14.9 (2010)
Approx. Cu. Ft. Per Unit: 10.5
Approx. Shipping Wt. Lbs.: 74

Additional Information

Manufacturer: Werner Co.
