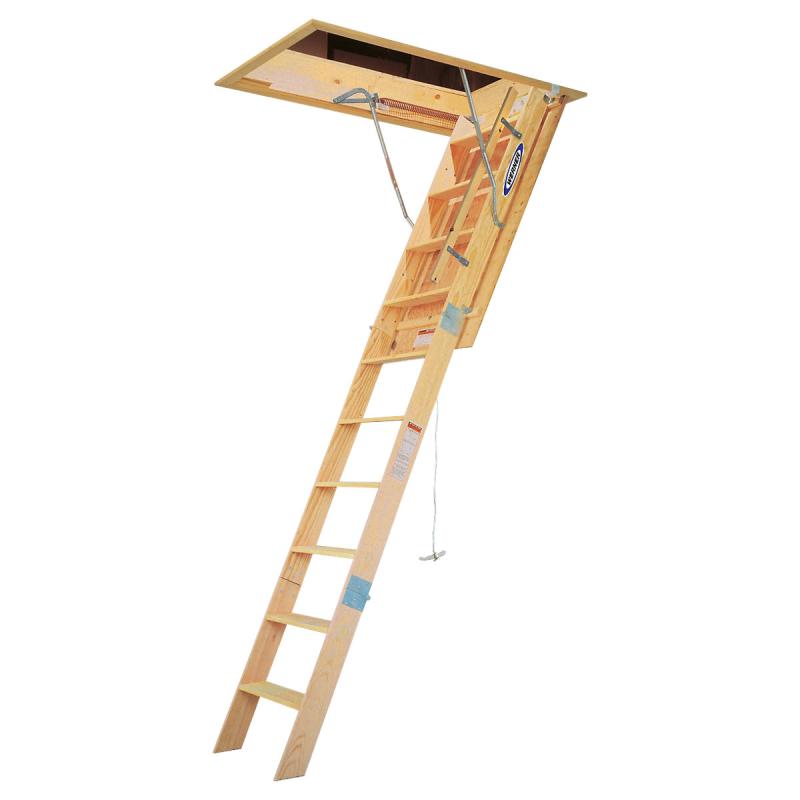

The WH series of wood Heavy Duty Attic Ladders boast a duty rating of 350 pounds. These ladders come fully assembled and ready to install. Full wrap-around door hinge minimizes heat loss. High quality door can be painted or stained. Pull string allows for easy opening and closing. Hinges butt metal to metal to maintain ladder rigidity. Counter-balance mechanism eliminates sag and springiness.

(click image to enlarge)

Quick Overview

Features:

Counter-balance mechanism eliminates sag and springiness
Full wrap-around door hinge minimizes heat loss
High quality door can be painted or stained
Hinges butt metal to metal to maintain ladder rigidity
Pull string allows for easy operation
Easy to open and close
Fully assembled and ready to install

Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

Performance Overview

Size	Load Capacity	Material
10'	350 lbs	Wood

Specifications

Size: 10'
Floor to Ceiling Height Range: 8'9" to 10'3"
Rough Opening Width x Length: 25" x 54"
Load Capacity: 350 lbs
Ladder Width: 16-3/4"
Landing Space Range: 5' 4"
Swing Clearance: 6'
Foot Material: wood
Locking Device: Spring
Opening Device: Rope
Door Material: Plywood
Frame Material: Pine
Full Width Door hinge: Yes
Metal-to-Metal Rail hinge: Yes
Requires Cutting Foot Angle: Yes
Number of People for Installation: 2
Certifications: ANSI A14.9 (2010)
Approx. Cu. Ft. Per Unit: 12
Approx. Shipping Wt. Lbs.: 67.5

Dimensions

Rail Size: 3/4" x 4-1/2"
Step Length: 15-1/4"
Step Width: 4-1/2"
Grooved Steps-Actual Lumber Size: 3/4" x 4-1/2"

Additional WH Series Models

Model No.	Size	Floor to Ceiling Height Range	Rough Opening Width x Length	Ladder Width	Landing Space Range
WH2208	8'	7' to 8'9"	22-1/2" x 54"	14-1/4"	4' 8"
WH2210	10'	8'9" to 10'3"	22-1/2" x 54"	14-1/4"	5' 4"
WH2508	8'	7' to 8'9"	25" x 54"	16-3/4"	4' 8"
WH2510	10'	8'9" to 10'3"	25" x 54"	16-3/4"	5' 4"
WH3008	8'	7' to 8'9"	30-1/2" x 54"	22-1/4"	4' 8"
WH3010	10'	8'9" to 10'3"	30-1/2" x 54"	22-1/4"	5' 4"

Additional Information

Manufacturer: Werner Co.
