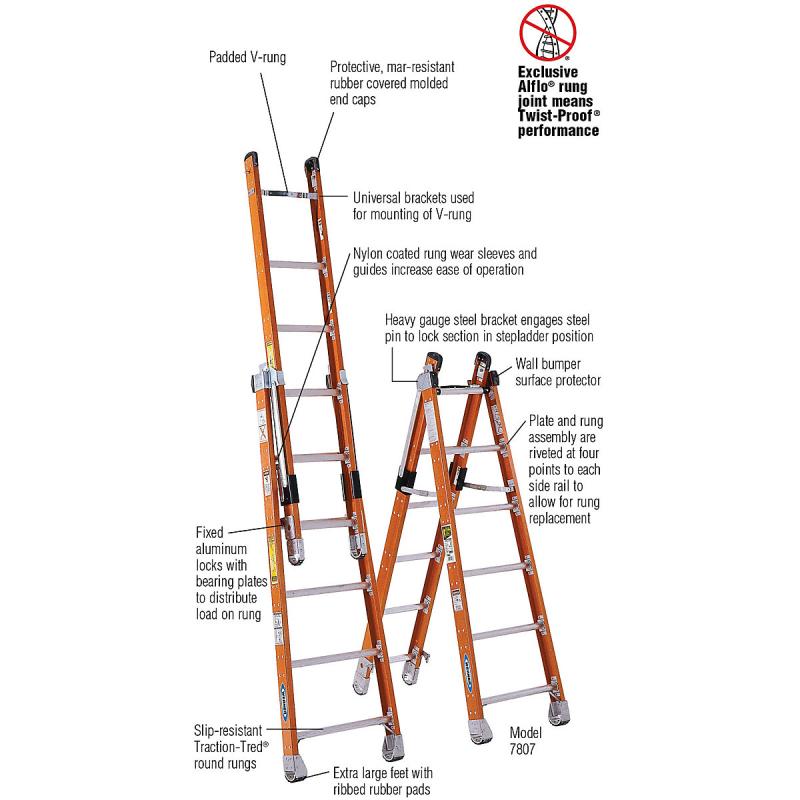

Combination ladder design can be quickly converted from twin stepladder position to straight ladder position
Exclusive ALFLO Rung plate joints for TWIST-PROOF Performance
Protective, mar-resistant rubber covered molded end caps, wall bumpers & padded V-Rung
Slip-Resistant TRACTION-TRED Round Rungs
Fixed aluminum locks with bearing plates to distribute load on rung
Nylon coated rung wear sleeves and guides increase ease of operation
Heavy gauge steel bracket engages steel pin to lock section in stepladder position
Extra Large Feet with Ribbed Rubber Pads
Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
Design for one or two-person jobs
Maximum load per side, including person and materials, shall not exceed duty rating of ladder

Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

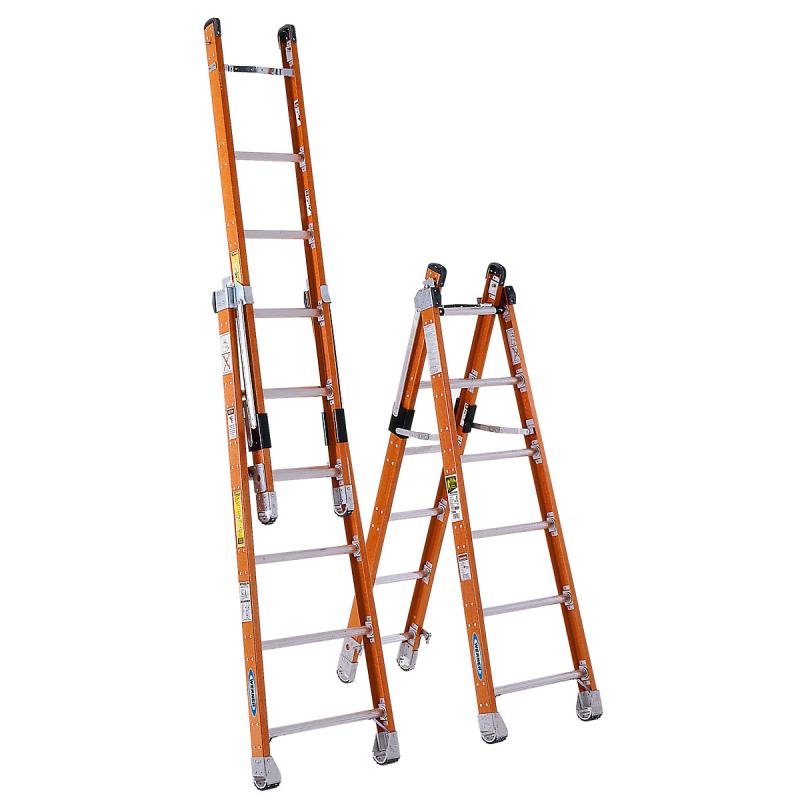

The 7800 combination step and extension ladders are versatile and easy to transport yet carry a duty rating of 375 pounds. As an extension ladder, the top rung is a padded V-rung for use against a tree or a pole. The protective rubber covered end caps are mar-resistant. Nylon-coated rung wear sleeves and guides increase the ease of raising and lowering the extension. Fixed aluminum locks with bearing plates distribute the load onto the rung where it should be. The TRACTION-TRED round rungs are slip resistant. In the stepladder position, this ladder can be used by one or two people. The 375 pound duty rating applies to each side of the ladder making it ideal for the worksite.

Specifications

Size: 12'

Reach Height: 12'

Max Working Length: 9'6"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Rung Type: Round

Foot Material: Slip-resistant pad

Number of Sections: 2

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 8.6

Approx. Shipping Wt. Lbs.: 33.5

Dimensions

Rails Dimension: 3-1/8"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/4"

Fly Width: 14-1/2"

Base Width: 23-1/4"

Additional 7800 Series Models:

Model No.	Size	Reach Height	Max Working Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
7806	12'	12'	9'6"	8.6	33.5
7807	14'	13'	11'6"	10.3	37
7808	16'	15'	13'6"	12.1	40.5

Additional Information

Manufacturer: Werner Co.
