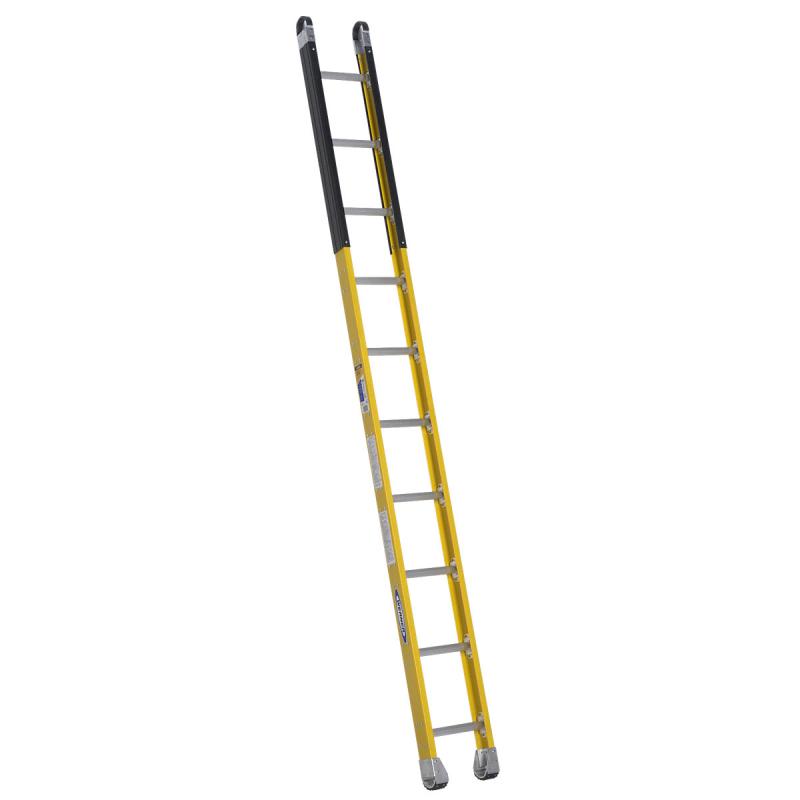

The M7100-1 Manhole ladders feature 3' replaceable plastic sleeves that protect the upper rails from manhole damage. These sleeves increase the longevity of the ladder. The combination rail shield and shoe protects the bottom of the rails from damage. The exclusive ALFLO rung joint means TWIST-PROOF performance, and these ladders also have a duty rating of 375 pounds. The vinyl coated aluminum hoop end caps are ideal for easily removing the ladder from the manhole. The TRACTION-TRED round rungs are slip resistant.

(click image to enlarge)

Quick Overview

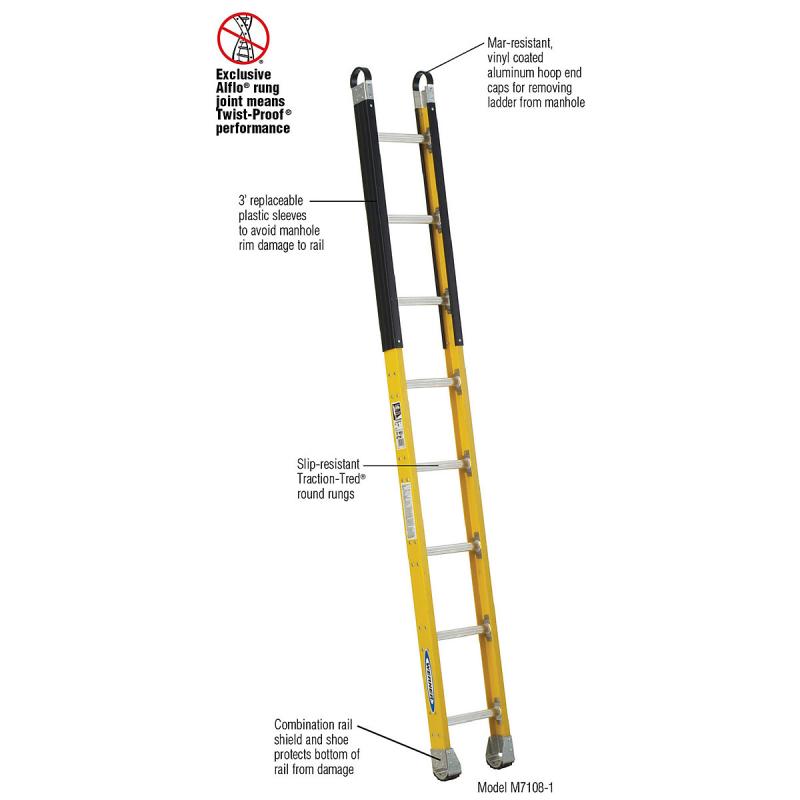

Features include:

Narrow 12-3/8" width design is ideal for special purposes like work in manholes
Exclusive ALFLO rung joint means TWIST-PROOF performance
Mar-resistant, vinyl coated aluminum hoop end caps for removing ladder from manhole
3' replaceable plastic sleeves to avoid manhole rim damage to rail
Slip-resistant TRACTION-TRED round rungs
Combination rail shield and shoe protects bottom of rail from damage

Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3-5/16"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/4"

Base Width: 12-3/8" outside shoes

Specifications

Size: 10'

Reach Height: 13'

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Rung Type: Round

Foot Material: Slip-resistant pad

Number of Sections: 1

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 3.7

Approx. Shipping Wt. Lbs.: 24

Additional M7100-1 Series Models:

Model No.	Size	Reach Height	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
M7108-1	8'	11'	3	20
M7110-1	10'	13'	3.7	24
M7112-1	12'	15'	4.4	28
M7114-1	14'	17'	5.2	32
M7116-1	16'	18'	5.9	39.5

Additional Information

Manufacturer: Werner Co.
