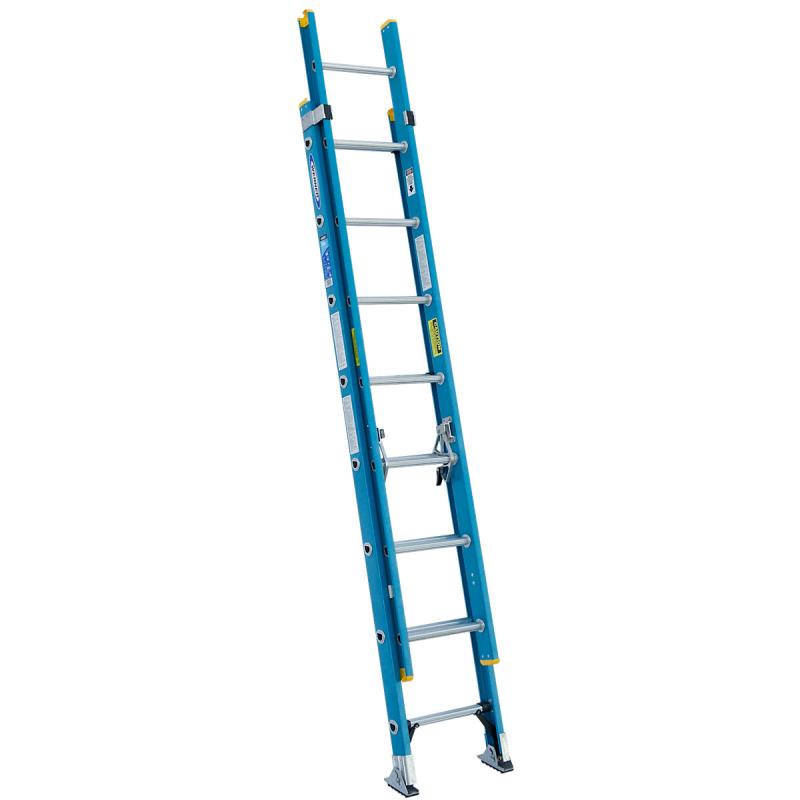

20' Type I Fiberglass D-Rung Extension Ladder

D6020-2

Werner Co.

The D6000-2 series fiberglass extension ladders have non-conductive side rails and a duty rating of 250 pounds. The TRACTION-TRED D rungs are slip resistant and the side rails are interlocking. The rail shields protect the bottom of the rail and the SHU-LOK shoe pivots easily for use on hard or penetrable surfaces. The exclusive ALFLO rung joint guarantees TWIST-PROOF performance.

(click image to enlarge)
Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-1/2" Slip-resistant Traction-Tred D-rungs
  • Smooth operating pulley with polypropylene rope
  • Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails
  • Durable extruded rung locks are spring loaded to operate smoothly
  • External guides at top of base secton securely interlock rails
  • Combination Rail Shield Bracket and Shoe with Shu-Lok and Slip-Resistant Pad
  • Internal guides on bottom of fly section securely interlock rails
  • Molded Rung Braces on bottom step for increases durability
  • Mar-Resistant Molded End Caps
Interested in this item or want more information?
Call Mon. through Fri. 6:00 AM - 5:00 PM PST
Phone: 818-704-4888
Email: jsansom@rjssupplies.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 3-3/8"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/2"
  • Fly Width: 15-3/4"
  • Base Width: 18-1/8" outside shoes

    • Specifications

  • Size: 20'
  • Reach Height: 19'
  • Max Working Length: 17'
  • Load Capacity: 250 lbs.
  • Type: Type I Duty Rating
  • Performance Rating: 3 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 8.7
  • Approx. Shipping Wt. Lbs.: 39

    • Additional D6000-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D6016-216'16'13'732.5
    D6020-220'19'17'8.739
    D6024-224'23'21'10.346
    D6028-228'27'25'1255.5
    Additional Information
    Manufacturer: Werner Co.
